VMV D3R

VMV D3R Flagship Dual ROHM DAC & Balanced Analog Pre-Amplifier

The VMV D3R is S.M.S.L's ultimate flagship desktop DAC and analog pre-amplifier, engineered for reference-level audio systems. Employing a dual-DAC architecture with two ROHM MUS-IC series BD34302EKV chips, an ultra-precise ±3ppb OCXO clock, and a fully balanced analog volume control stage, it serves as a masterwork of high-resolution decoding, delivering supreme analog richness, massive dynamic scale, and zero channel crosstalk.

Dual ROHM MUS-IC BD34302EKV Flagship Architecture

Unlike standard designs, the D3R utilizes a dual-mono configuration featuring two flagship ROHM BD34302EKV DAC chips—one dedicated to each channel. This design achieves absolute channel separation, massive dynamic range, and an organic, fluid, and analog-like tonality. Operating with a measured THD+N as low as 0.00013% (-117dB), it recovers the finest acoustic details and deepest instrumental layers from your high-resolution files.

Master-Class ±3ppb OCXO & CK-04 Jitter Elimination

To provide reference-level timing precision, the D3R is equipped with an ultra-precise internal ±3ppb 10MHz OCXO (Oven Controlled Crystal Oscillator), raising the bar for jitter suppression. Managed by S.M.S.L's self-developed CK-04 clock processing system, digital phase noise is virtually eliminated. For high-end synchronized systems, it also supports external standard 10MHz reference or atomic clock inputs with selectable 50Ω or 75Ω matching impedance.

True Balanced Analog Pre-Amplifier Stage

The D3R features a built-in, fully balanced analog volume control circuit, enabling true reference pre-amplifier functionality. By keeping the volume adjustments entirely in the analog domain, it maintains maximum signal resolution and dynamic range at any volume level. It serves as the perfect control hub to feed directly into active studio monitors or high-end power amplifiers via its balanced XLR (delivering a massive 5.2Vrms) or unbalanced RCA outputs.

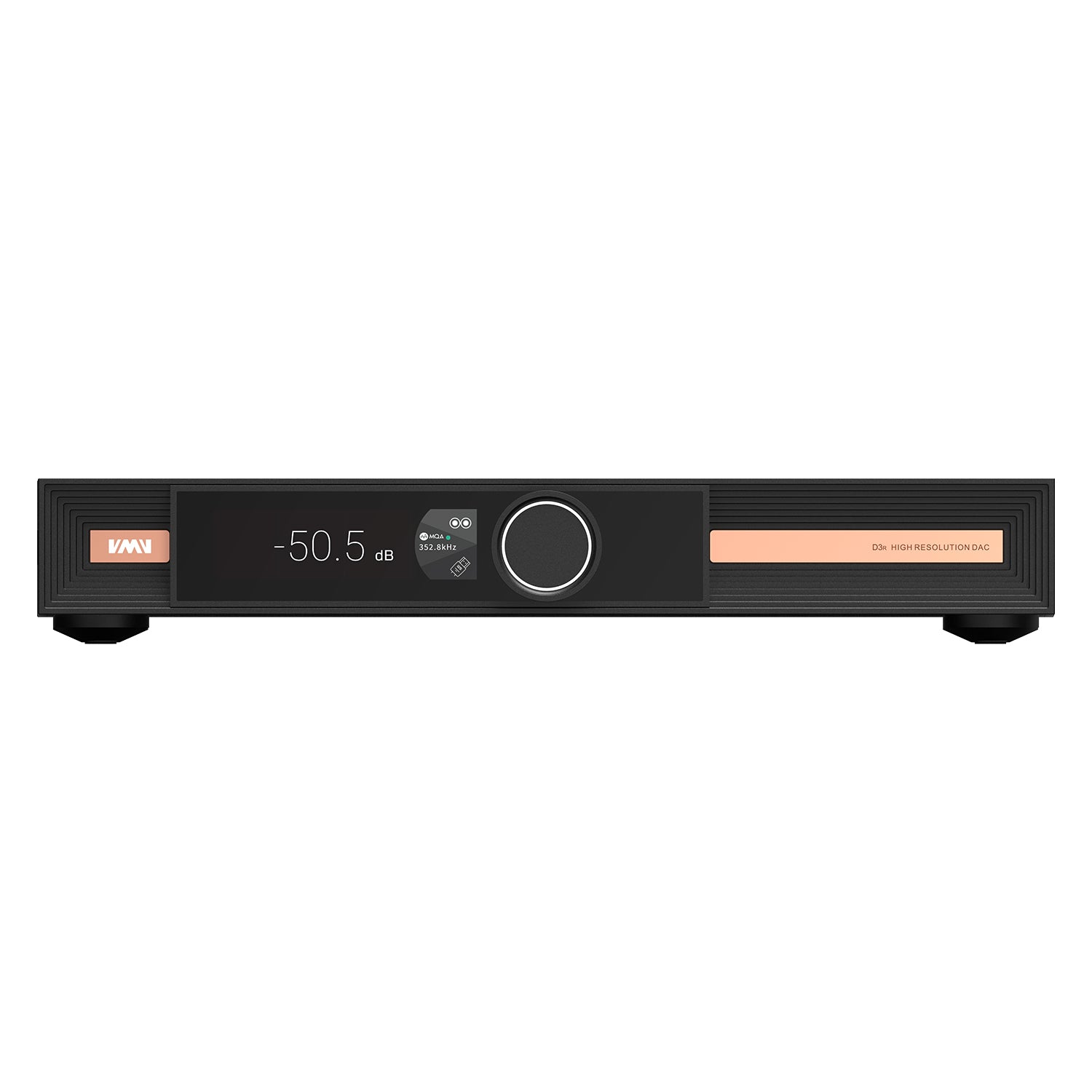

Premium 3.49-Inch IPS Screen & Advanced Connectivity

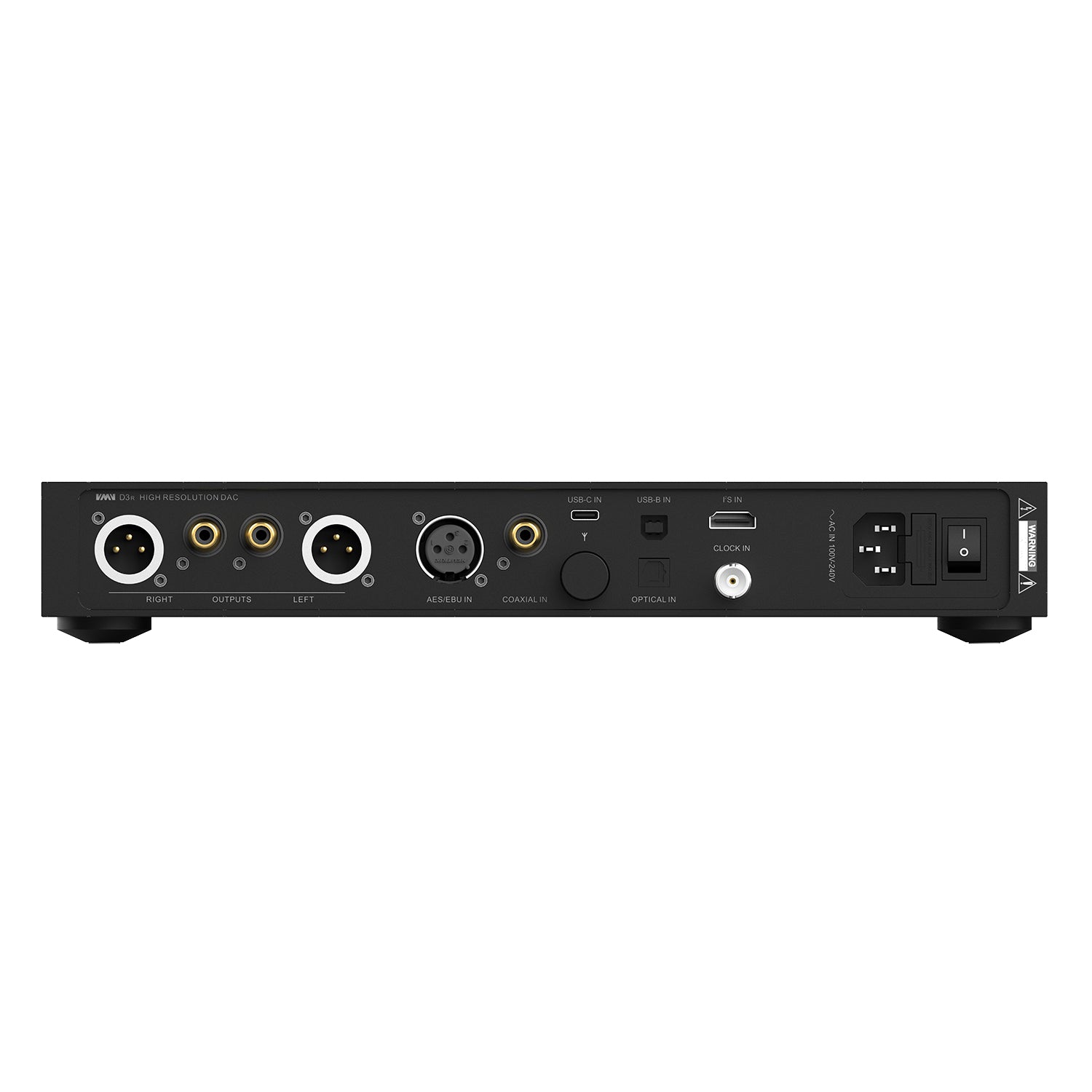

Housed in a robust, CNC-milled solid aluminum alloy chassis, the D3R features a massive 3.49-inch fully laminated tempered glass screen that displays S.M.S.L's brand-new, multi-language UI. Under the hood is the top-tier 32-bit XMOS XU-316 USB processor, supporting PCM up to 768kHz, native DSD512, and DoP. The rear panel includes gold-plated connections for dual USB inputs (USB-B & USB-C), Optical, Coaxial, I2S (HDMI), and AES/EBU, as well as an advanced Qualcomm Bluetooth 5.4 receiver supporting LDAC (24-bit/96kHz), aptX HD, and real-time metadata display.

BEST SET & Patented Adaptive Linear Power Supply

Equipped with S.M.S.L's patented Adaptive Voltage Switching technology, the D3R utilizes an extremely quiet linear power supply paired with multi-channel low-noise regulators to keep analog circuits entirely clean from digital noise. For ease of use, S.M.S.L's 'BEST SET' feature lets you instantly configure all digital filters, sound colors, and output settings to our master-tuned performance profile with a single press.

Specifications
